EBS Trailer Control Valve
Twin-Cyl.Compressor 704cc,flangemounted
Material Number:
4802040020
Gross Unit Price:
638.00
Ominaisuudet ja edut
Replaces
-
DAEWOO3454403480
-
DAF1601034
-
DAF1315695
-
DAF4103223
-
DAF0004319413
-
DAF41211417
-
DAF8152
-
DAF81523016208
-
EVOBUSA0004319413
-
HYUNDAI597107K000
-
IRISBUS41211417
-
ISUZU1482401911
-
IVECO41211417
-
IVECO41032232
-
IVECO4103223
-
IVECO0004319413
-
IVECO1315695
-
IVECO1601034
-
IVECO8152
-
IVECO81523016208
-
LEYLAND DAF1601034
-
MAN81523016208
-
MAN81923016216
-
MAN4103223
-
MAN0004319413
-
MAN1315695
-
MAN1601034
-
MAN41211417
-
MAN8152
-
MERCEDES-BENZ0004319413
-
MERCEDES-BENZA0004319413
-
MERCEDES-BENZ4103223
-
MERCEDES-BENZ1315695
-
MERCEDES-BENZ1601034
-
MERCEDES-BENZ41211417
-
MERCEDES-BENZ8152
-
MERCEDES-BENZ81523016208
-
NEOPLAN81523016208
-
PACCAR1601034
-
SCANIA1935136
-
SCHMITZ CARGOBULL1042024
-
SCHWARZMÜLLER97456
-
SHAANXIDZ95259364002
-
SOLARIS1102219001
-
UD TRUCKS4528900Z05
-
VAN HOOL11167595
-
VDL297659
-
VDL20297659
Doc Type
info
Locale
de
Artical Number
e1-xx6395_075
Doc Type
info
Locale
multi
Artical Number
e1-xx1550_076
Service & Repair

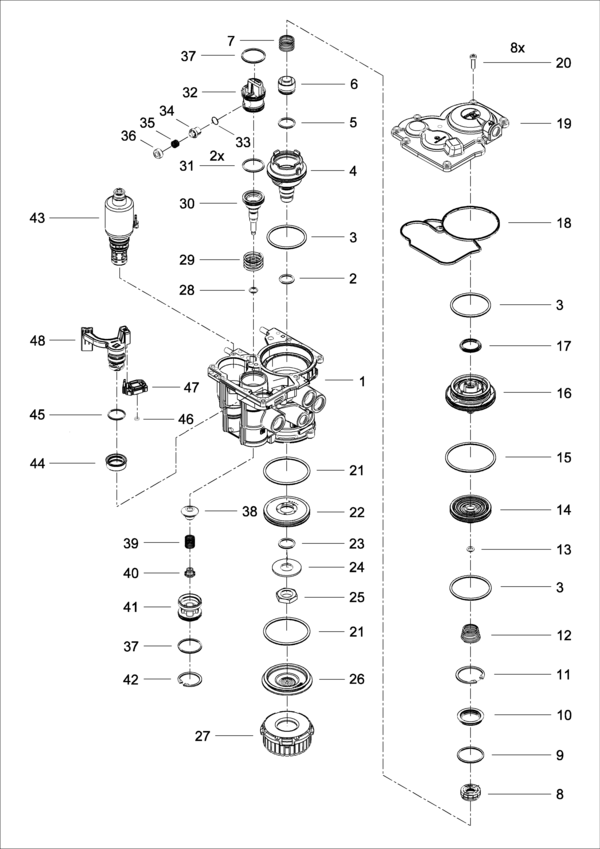

List of Spare Parts
| 1 | Kori | 1 | ||
| 2 | O-Ring ISO3601-18,72x2,62 | 1 | 8970861504 | |
| 3 | O-Ring ISO3601-56,75x3,53 | 3 | 4802049202 | 8970865104 |
| 4 | Piston | 1 | ||
| 5 | O-Ring ISO3601-21,3x2,4 | 1 | 4802049202 | 8977728174 |
| 6 | Guide | 1 | 4802049202 | 9730111504 |
| 7 | Cylindrical Compression Spring | 1 | 4802049202 | 8965168154 |
| 8 | Valve body | 1 | 4802049202 | |
| 9 | O-Ring ISO3601-37,77x2,62 | 1 | 4802049202 | 8977862704 |
| 10 | Valve seat | 1 | 4802049202 | |
| 11 | Retaining ring DIN472-42x1,75 | 1 | 4802049202 | |
| 12 | Conical compression spring | 1 | 4802049202 | |
| 13 | O-Ring ISO3601-7,5x2,5 | 1 | 4802049202 | |
| 14 | Piston | 1 | 4802049202 | |
| 15 | O-Ring | 1 | 4802049202 | |
| 16 | Piston | 1 | 4802049202 | |
| 17 | Lip Seal | 1 | 4802049202 | |
| 18 | Sealing | 1 | 4802049202 | |
| 19 | Cover | 1 | ||
| 20 | Cheese head screw ISO14580-M6x20 | 8 | ||
| 21 | O-Ring ISO3601-65x4 | 2 | ||
| 22 | Piston | 1 | ||
| 23 | O-Ring ISO3601-21,89x2,62 | 1 | 8977864504 | |
| 24 | Washer | 1 | ||
| 25 | Hexagon nut | 1 | ||
| 26 | Perforated Disc | 1 | ||
| 27 | Bottom | 1 | ||
| 28 | O-Ring ISO3601-10,82x1,78 | 1 | ||
| 29 | Cylindrical compression spring | 1 | ||
| 30 | Piston | 1 | ||
| 31 | O-Ring ISO3601-30,3x2,4 | 2 | 8970806504 | |
| 32 | Piston | 1 | ||
| 33 | O-Ring ISO3601-10,1x1 | 1 | ||
| 34 | Guide piece | 1 | 9730091514 | |
| 35 | Cylindrical compression spring | 1 | ||
| 36 | Cap | 1 | ||
| 37 | O-Ring ISO3601-33,3x2,4 | 2 | 8970808804 | |
| 38 | Piston | 1 | ||
| 39 | Cylindrical compression spring | 1 | ||
| 40 | Spring guide | 1 | ||
| 41 | Cover | 1 | ||
| 42 | Retaining ring DIN472-38x1,5 | 1 | 8105180264 | |
| 43 | 1 | |||
| 44 | Sealing | 1 | 4802049232 | |
| 45 | O-Ring ISO3601-23x2 | 1 | 4802049232 | 8970827904 |
| 46 | O-Ring ISO3601-4,47x1,78 | 1 | 4802049232 | 8970867704 |
| 47 | Pressure Sensor Module | 1 | 4802049232 | |
| 48 | Connector Housing | 1 |
